Tuesday, 9 December 2014

SharePoint 2010 - SharePoint Object Model

For programming against SharePoint items, we need to retrieve the properties and the methods to operate on them. The SharePoint Object Model provides various classes to accomplish this. In this article we can discuss the Object Model with the core classes involved with a little amount of coding.

Please note that there are 2 Object Models in SharePoint 2010:

  1. Server Object Model
  2. Client Object Model
Here we are discussing only the Server Object Model. The Server Object Model classes are used for server-side programming and will be executed on the SharePoint Server Farm.

Namespace

The Server Object Model classes reside in the Microsoft.SharePoint assembly. The general classes are available in the Microsoft.SharePoint namespace and the administration classes inside the Microsoft.SharePoint.Administration namespace.

Core Classes

The following are the important classes and their corresponding SharePoint items:

Class
SharePoint Item
SPFarm
Farm
SPServer
Server
SPSite
Site Collection
SPWeb
Web site
SPControl
Control
SPList
List
SPDocumentLibrary
Document Library
SPContentType
Content Type
SPUser
User
SPException
SharePoint Exception
Programming

Now we can start experimenting with some of the classes above. To begin, we can create a SharePoint Console Application. Use the "New Project" > "SharePoint" > "Console Application" project item.


Accessing the List Items in a List

To proceede with this example, create a list derived from the Contacts template and name it "My Contacts".

Add some items inside it with the First Name and Last Name set.

Use the following code inside the Console application and execute it.
using (SPSite site = new SPSite("http://appes-pc/my/personal/dotnet")) // Site Collection{
    using (SPWeb web = site.OpenWeb()) // Site    {
        SPList list = web.Lists["My Contacts"]; // List        int i = 1;
        foreach (SPListItem item in list.Items)
        {
            Console.WriteLine("Item: " + (i++).ToString());

            Console.WriteLine(item.Name);
            Console.WriteLine(item.Title);
            Console.WriteLine(item.GetFormattedValue("First Name"));
            Console.WriteLine(item.GetFormattedValue("Last Name"));
            Console.WriteLine(string.Empty);
        }
    }
}
Console.ReadKey(false);

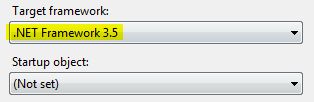

If you receive any build errors regarding a namespace then change the "Project Properties" > "Target" to ".Net Framework 3.5".

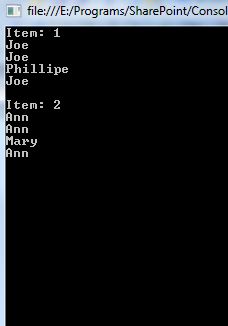

Now try building the application and it should work fine. You will see the following output:

Please note the use of Title and Name properties and the GetFormattedValue() method.

Accessing the items in a library

Now we can proceed with accessing the document library items programmatically. For proceeding you need to create a document library inheriting from the Document Library template and name it "My Docs". Upload one or two documents into it. We are proceeding to get the file name and length in this example.

Enter the following code in the console application.
using (SPSite site = new SPSite("http://appes-pc/my/personal/dotnet")) // Site Collection{
    using (SPWeb web = site.OpenWeb())                    // Site    {
        SPDocumentLibrary library = web.Lists["My Docs"] as SPDocumentLibrary; // Library        int i = 1;
        foreach (SPListItem item in library.Items)
        {
            Console.WriteLine("Item: " + (i++).ToString());
            Console.WriteLine(item.File.Name);
            Console.WriteLine(item.File.Length);
            Console.WriteLine(string.Empty);
        }
    }
}

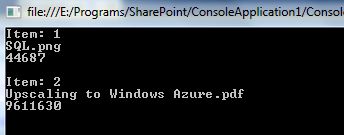

Executing the application, you will see the following results.


SPControl

The SPControl class acts as the base class for developing server controls. It reseides in the namespace Microsoft.SharePoint.WebControls.

SPControl provides static methods that returns a reference to the current site, web, web application, module. The methods are:
SPControl.GetContextSite()SPControl.GetContextWeb()SPControl.GetContextWebApplication()SPControl.GetContextModule()

SPException

The SPException class can be used to handle an exception in a try/catch block. It represents the exceptions thrown by the server object model.
try{
    // Code here}
catch (SPException ex)
{
    // Handle Exception}


SPUser

The SPUser class can be used to access user information for a SharePoint site. Enter the following code to get the number of users and their names.
using (SPSite site = new SPSite("http://appes-pc/my/personal/dotnet"))
{
    using (SPWeb web = site.OpenWeb())
    {
        foreach (SPUser user in web.AllUsers)
            Console.WriteLine("User: " + user.Name);
    }
}

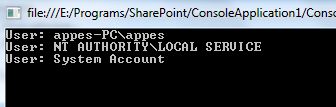

On running the code you will see the results based on your machine users.


Note

You can add a new list item or library item using the Items.Add() method. For updating and deleting use the item.Update() and item.Delete() methods respectively. More code coverage on these areas will be provided later.

References

http://msdn.microsoft.com/en-us/library/ms473633.aspx
http://msdn.microsoft.com/en-us/library/microsoft.sharepoint.webcontrols.spcontrol.aspx
http://msdn.microsoft.com/en-us/library/microsoft.sharepoint.spuser.aspx



Reference:

http://www.c-sharpcorner.com/UploadFile/40e97e/sharepoint-2010-sharepoint-object-model/
