Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.
Question: What is Permission level?

In simple terms "The permission levels are set for the permissions defined that grants permission to users or groups to perform specific actions. The default permission levels are as follows: Read, Contribute, Design, and Full Control".
Step 1: Open SharePoint 2010 Central Administration and navigate to a specific site.

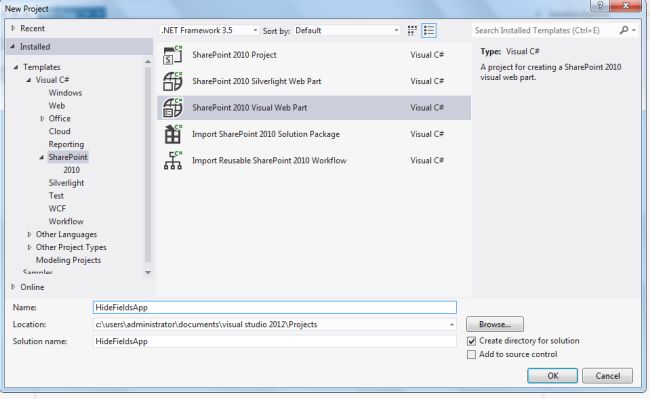

Step 2: Open up Visual Studio 2012 and try to "SharePoint Visual Web Part" project, as in:


Step 3: Select "Deploy as a farm solution" as in the following and click the "Finish" button.


Step 4: The complete code of visualwebpart1usercontrol.ascx looks like this:

<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>
<%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"
    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>
<%@ Import Namespace="Microsoft.SharePoint" %>
<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"
    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@  Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs"
    Inherits="AddPermissionLevelApp.VisualWebPart1.VisualWebPart1" %>
<%--<center>--%>
<div>
    <table style="font-family: Verdana; text-align: center;">
        <tr>
            <td colspan="2">
                <asp:label id="Label1" runat="server" text="Add Permission Level - SharePoint 2010 via Visual Studio 2012"
                    font-bold="true" forecolor="Maroon" font-size="Large"></asp:label>
            </td>
        </tr>
        <tr>
            <td>
                <asp:label id="Label2" runat="server" text="Please Enter Permission Level Name:"></asp:label>
            </td>
            <td>
                <asp:textbox id="TextBox1" runat="server" width="117px"></asp:textbox>
            </td>
        </tr>
        <tr>
            <td>
                <asp:label id="Label3" runat="server" text="Please Enter Permission Level Description:"></asp:label>
            </td>
            <td>
                <asp:textbox id="TextBox2" runat="server" textmode="MultiLine" width="117px"></asp:textbox>
            </td>
        </tr>
        <tr>
            <td colspan="2">
                <asp:button id="Button1" runat="server" text="Add Permission Level" forecolor="Orange"
                    font-bold="true" backcolor="Black" onclick="Button1_Click" width="228px" />
            </td>
        </tr>
        <tr>
            <td colspan="2">
                <asp:label id="Label4" runat="server" font-bold="true"></asp:label>
            </td>
        </tr>
    </table>
</div>
<%--</center>--%>

Step 5: The complete code of visualwebpart1usercontrol.ascx.cs looks like this:

using Microsoft.SharePoint;
using System;
using System.ComponentModel;
using System.Web.UI.WebControls.WebParts;namespace AddPermissionLevelApp.VisualWebPart1
{
    [ToolboxItemAttribute(false)]
    public partial class VisualWebPart1 : WebPart
    {
        // Uncomment the following SecurityPermission attribute only when doing Performance Profiling using
        // the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready
        // for production. Because the SecurityPermission attribute bypasses the security check for callers of
        // your constructor, it's not recommended for production purposes.
        // [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]
        public VisualWebPart1()
        {
        }
        protected override void OnInit(EventArgs e)
        {
            base.OnInit(e);
            InitializeControl();
        }
        protected void Page_Load(object sender, EventArgs e)
        {
            TextBox1.Focus();
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))
            {
                Label4.Text = "Please Enter Some Values";
                Label4.ForeColor = System.Drawing.Color.Red;
            }
            else
            {
                SPWeb web = SPContext.Current.Web;
                SPRoleDefinition rDefination = new SPRoleDefinition();
                rDefination.Name = TextBox1.Text;
                rDefination.Description = TextBox2.Text;
                rDefination.BasePermissions = SPBasePermissions.ManageAlerts |SPBasePermissions.AddListItems | SPBasePermissions.EditListItems | SPBasePermissions.DeleteListItems;
                web.RoleDefinitions.Add(rDefination);
                web.Update();
                Label4.Text = TextBox1.Text + " - Permission Level Created Successfully";
                Label4.ForeColor = System.Drawing.Color.Green;
                TextBox1.Text = string.Empty;
                TextBox2.Text = string.Empty;
            }
        }
    }
}

Step 6: Deploy the solution file and add the new webpart to a SharePoint site.

Step 7: The output of the application looks like this:



Step 8: Data entering output of the application looks like this:

Data-entering-output -sharepoint2010.jpg



Step 9: Permission level created output of the application looks like this:


I hope this article is useful for you.
